SolidTrax Universal Track Dolly DIY Wheel Assembly

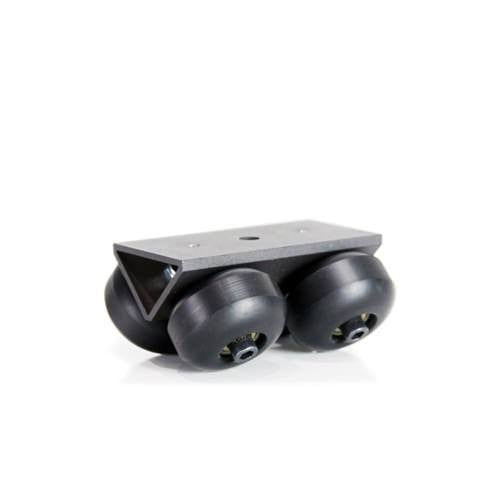

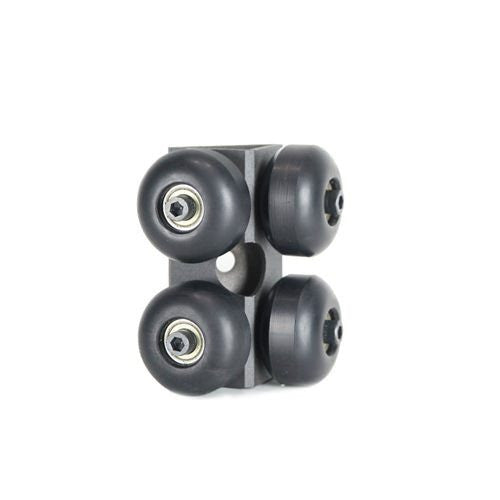

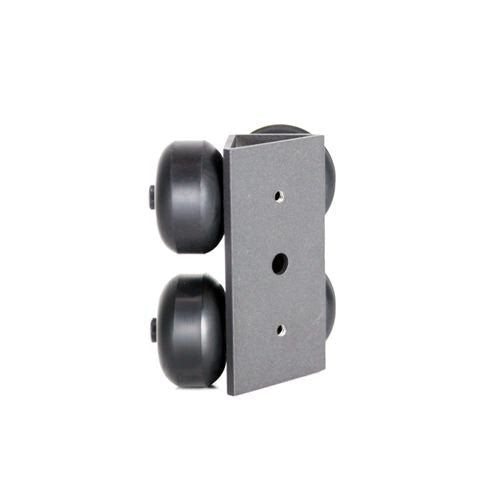

The foundation of the SolidTrax is the quad wheel assembly. It is comprised of 4 polyurethane wheels and 8 precision bearings. The wheels are mounted to a heavy duty aluminum bracket with multiple mounting points for varying applications. Each set provides a smooth and stable ride along tracks sized 3/4” to 1 and 1/2”. The wheel assemblies are available individually so you can mount them to your specific application.

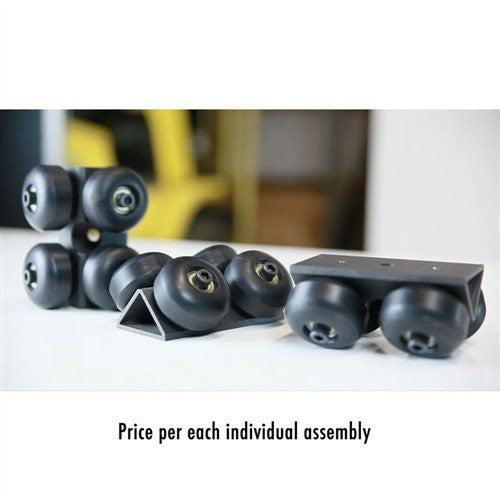

Price is per each wheel assembly.
Specifications
- Mounting: One 3/8" Bolt, Two 1/4-20 Threads
- Capacity: 70 lb (32 kg)
- Style: Track
- Track Size Compatibility: 3/4" - 1.5" (1.9 - 3.8 cm)
- Wheel Size: 53 mm Poly
- Material: Aluminum Bracket, Polyurethane Wheels
- Finish: Powdercoat
- UPC: 728028332469
Questions & Answers
Have a Question?
-
Hi, what are the product dimensions and weight? thanks
Each wheel assembly, is 4.5 inches long x 4.125 in wide x 2.18 in tall. The weight is 1.2 pounds.
-
RE: your SOLIDTRAX UNIVERSAL TRACK DOLLY DIY WHEEL ASSEMBLY These say "70lb capacity", is that 70 pounds per unit? so three would be 210 pounds then?
Yes, that's correct. Each set individually supports 70 lbs. A set of 4 can support a person on the dolly, so long as the platform you use is also rated to.
