ProAm USA

Modus Camera Mounting System - Platform with 4 Vehicle Magnets

Sale price$199.00 Regular price$223.00
Save $24.00
Quantity:

PRODUCT DESCRIPTION



The Modus Camera Mount is the foundation to a professional camera mounting system for use on vehicles & dolly tracks.

Recommended to support cameras and accessories up to 12 pounds
Features various 1/4-20 and 3/8-16 threads for ultimate compatibility

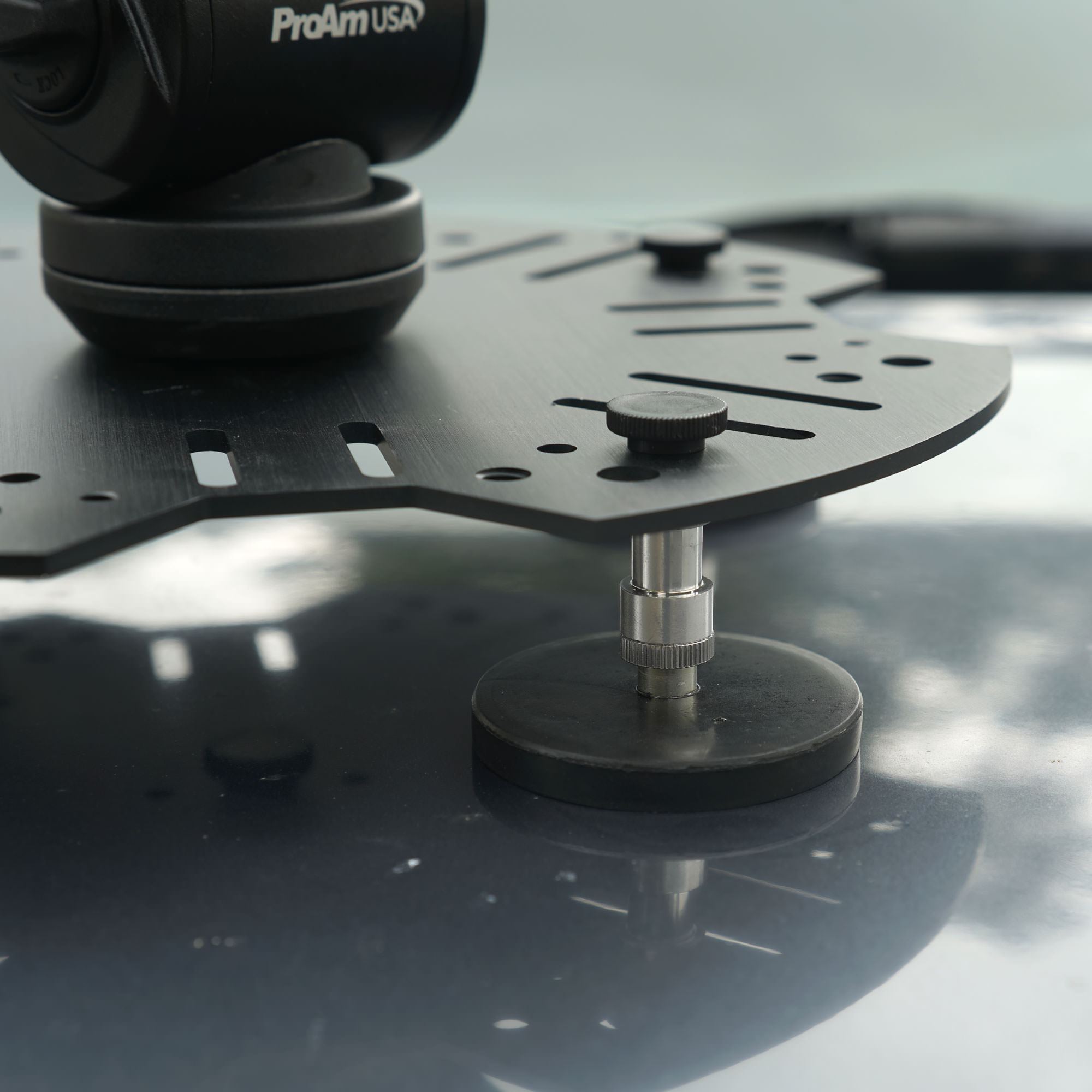

Each magnet has 6 neodymium magnets, each 1/2 inch in diameter
Rubber coating prevents scratches on vehicles
Up to 40 pounds of vertical pulling strength per magnet*

Includes one (1) Modus platform, four (4) magnet mounts, six (6) risers and fastening hardware. Tripod head is not included.

*While the vertical pulling strength maxes at 40 pounds, real world conditions reduce the operating weight limit. Mounted loads will put additional torque on the magnet. Camera and accessories, when mounted, raise the center of gravity of the mount making it easier to remove. Always use a secondary method of securing the device being mounted, such as a lanyard or tie-down strap.

PRODUCT VIDEOS

FEATURES AND SPECIFICATIONS

  • All aluminum 4mm thick plate, 12 inches in diameter
  • Supports camera loads weighing up to 12 lbs (5.45 kg)
  • Black anodized aluminum to reduce fingerprints
  • Various 1/4-20 and 3/8-16 threaded mounts, 1/4 in grooves
  • Unit Weight: 6 lbs (2.7 kg)
  • Shipping Weight and Dimensions: 8 lbs, 18" x 16" x 8"
  • Lifetime Warranty and 30 Day Money Back Guarantee

AVAILABLE OPTIONS

4 Sets of SolidTrax Wheel Assemblies allow you to mount the Modus on your own tracks sized 3/4 in to 1-1/2 inches. Track width will be 7-1/4 inches on center.
modus-track-dolly-wheels-assembled-fluid-head-option

The Table Top Dolly Wheel Option features 4 wheels and two adjustable crossbars that can be locked into place making smooth curving dolly moves.

modus-adjustable-dolly-wheels-assembled-option-fluid head

Our recommended fluid head features a hydraulic damping system and is compatible with the Manfrotto 577 plates. The Ronin adapter mount fits both M and MX models.



modus-vehicle-magnet-mount-ronin-option

A DIY style vibration isolator kit is available as an option for filmmakers who require shock absorption while vehicle mounted. Includes 1 additional Modus platform, components to build 4 sets and 10 feet of wire in three sizes.



modus vehicle magnet mount vibration isolator option





Questions & Answers

Have a Question?

Ask a Question
  • how much is the plate only

    We have the mounting plate available for purchase here.
