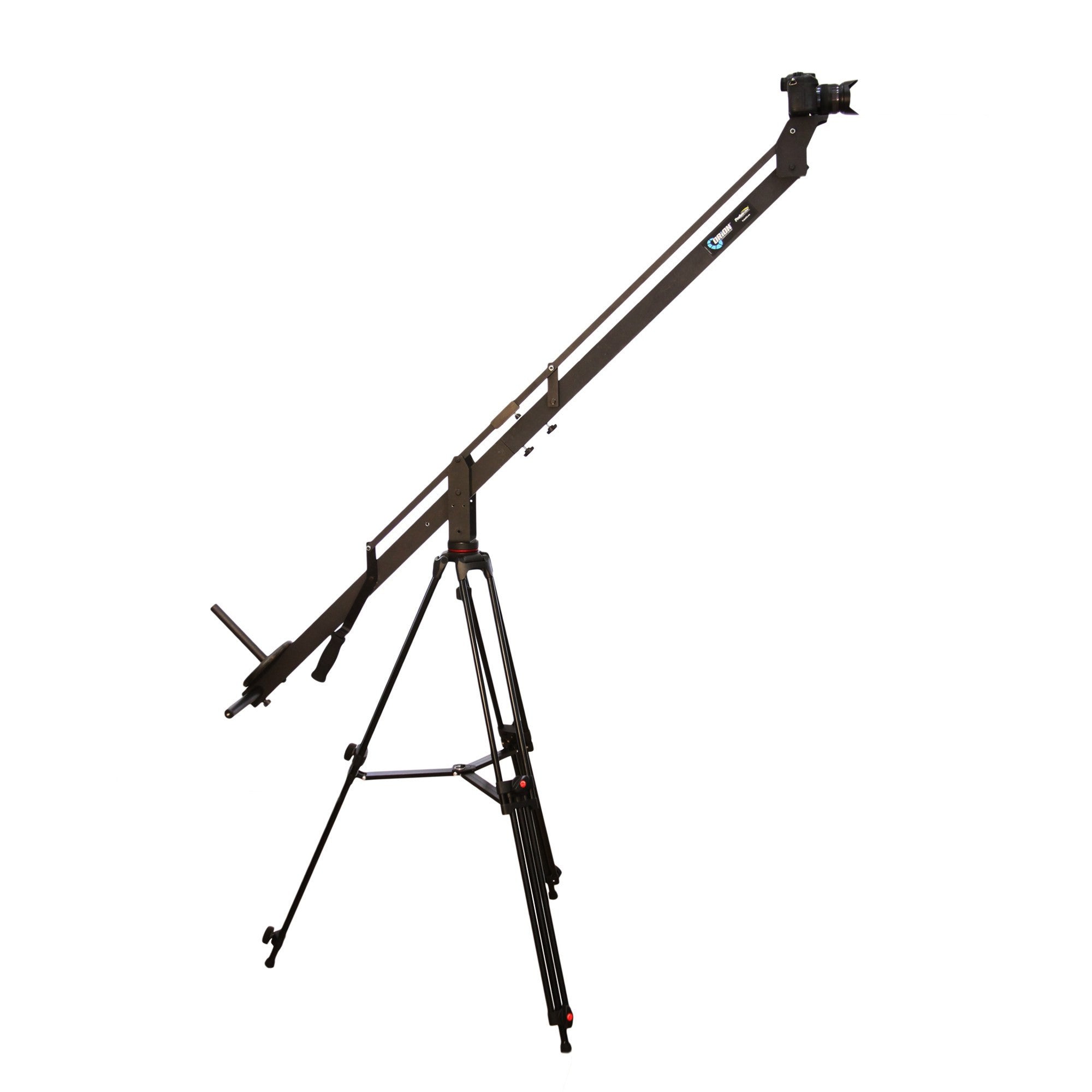

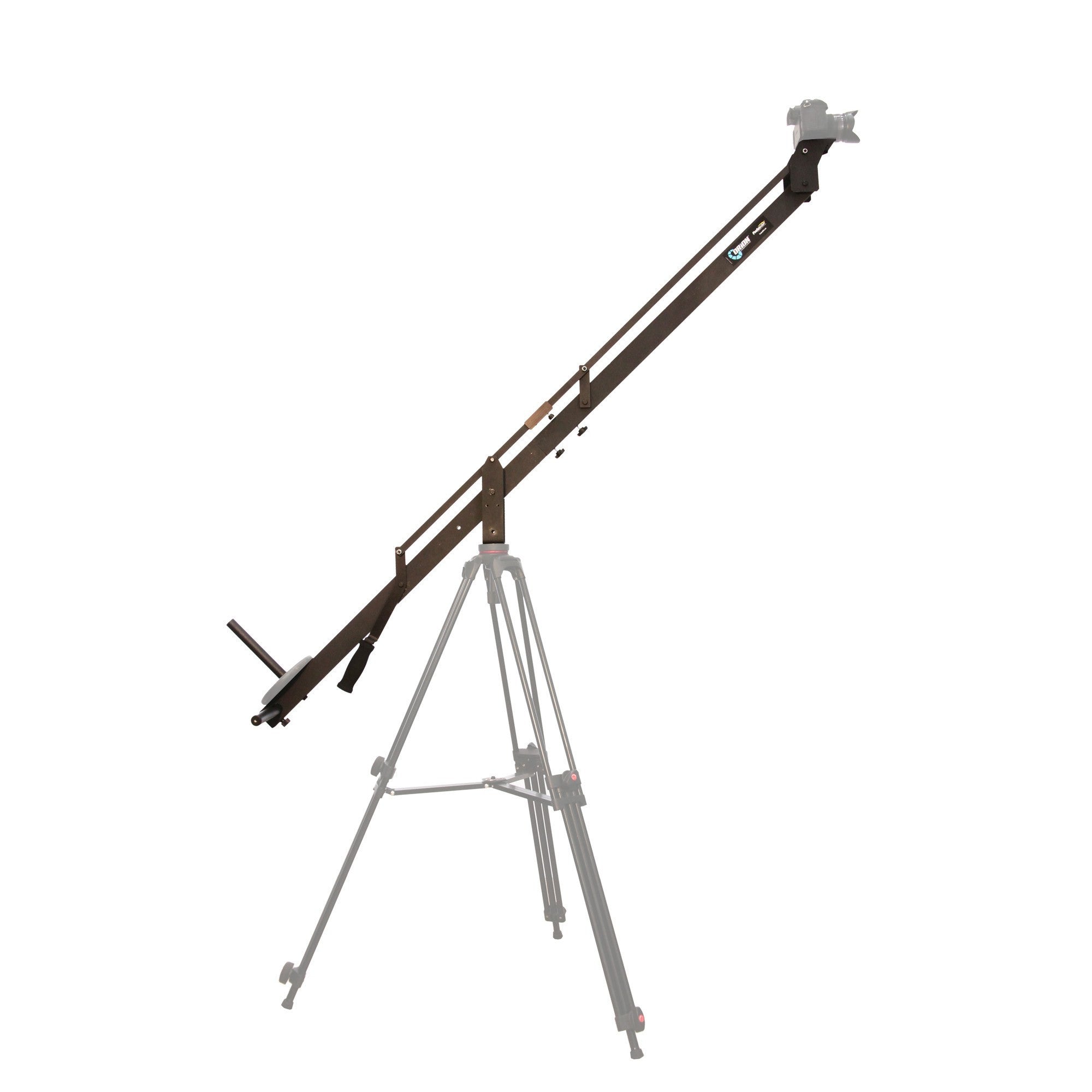

Orion DVC260 6 ft Camera Crane, Extendable to 12 ft
Quantity:
PRODUCT VIDEOS
PRODUCT DESCRIPTION

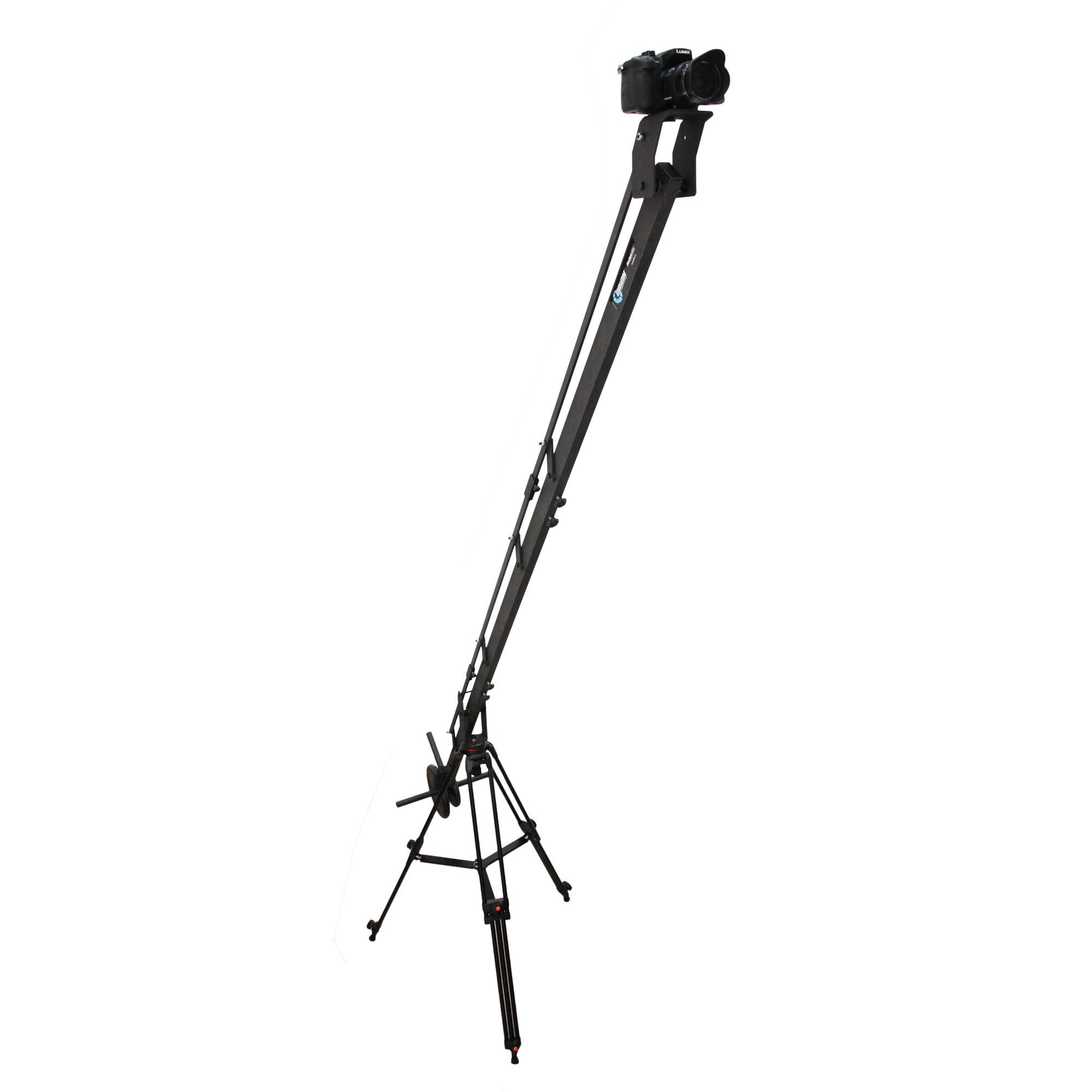

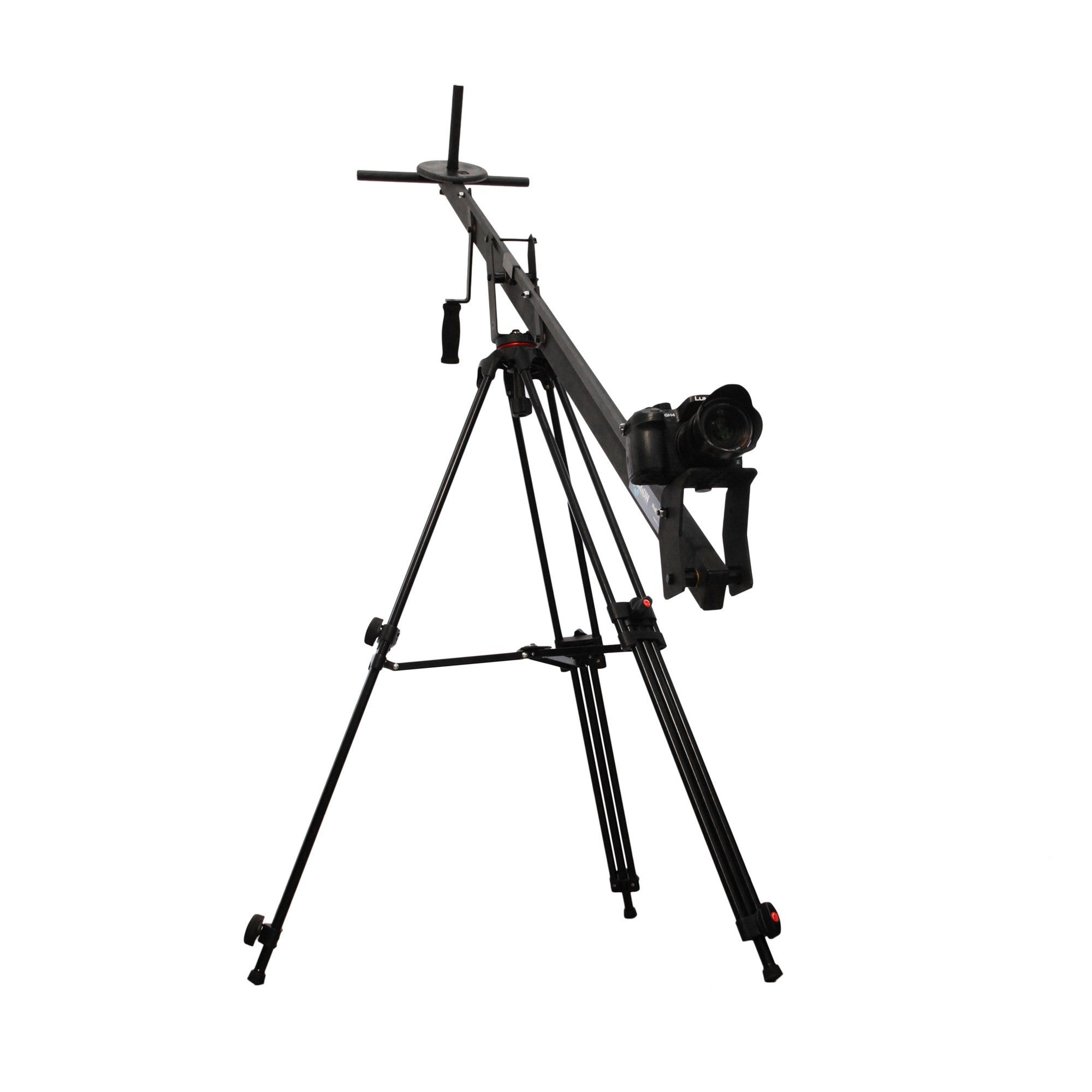

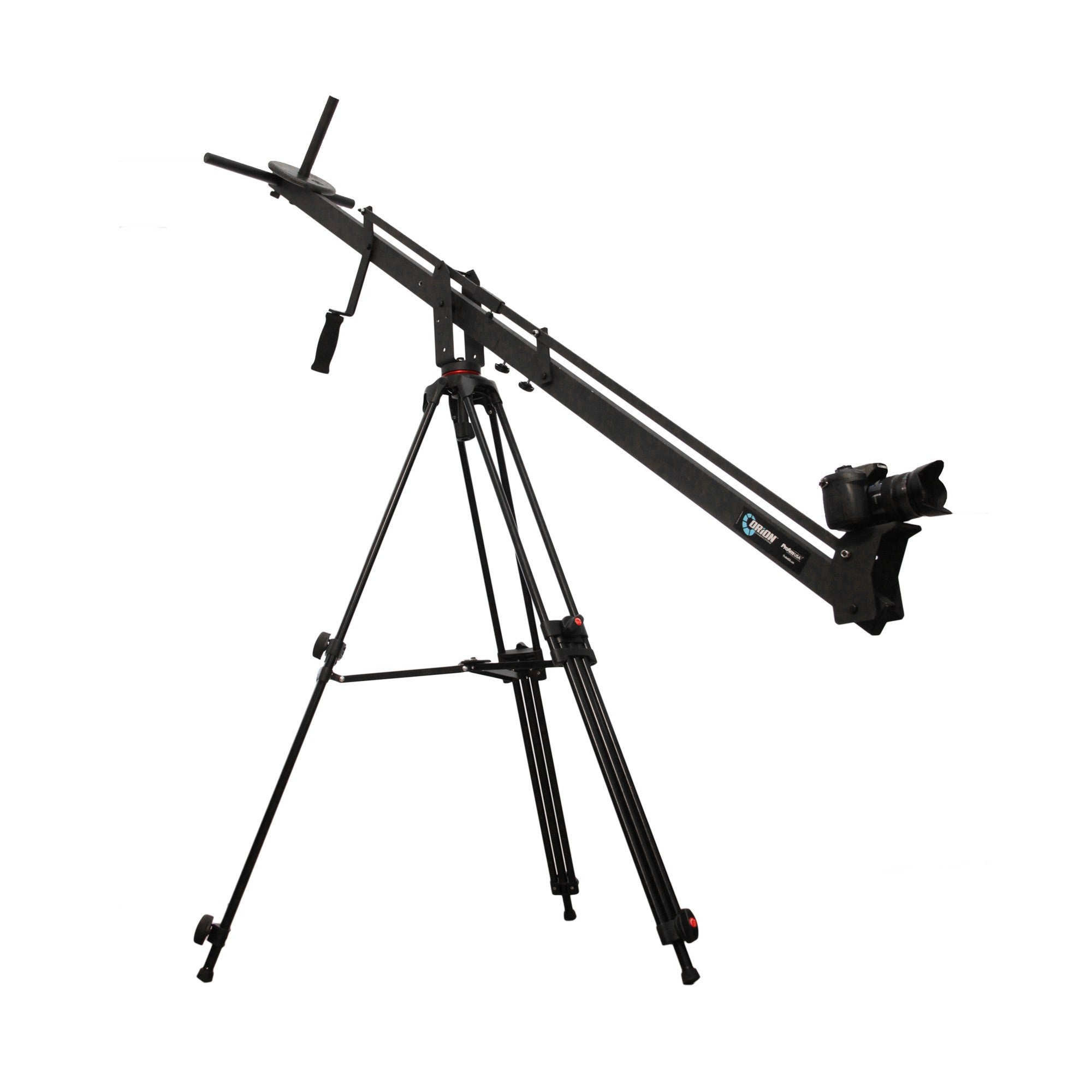

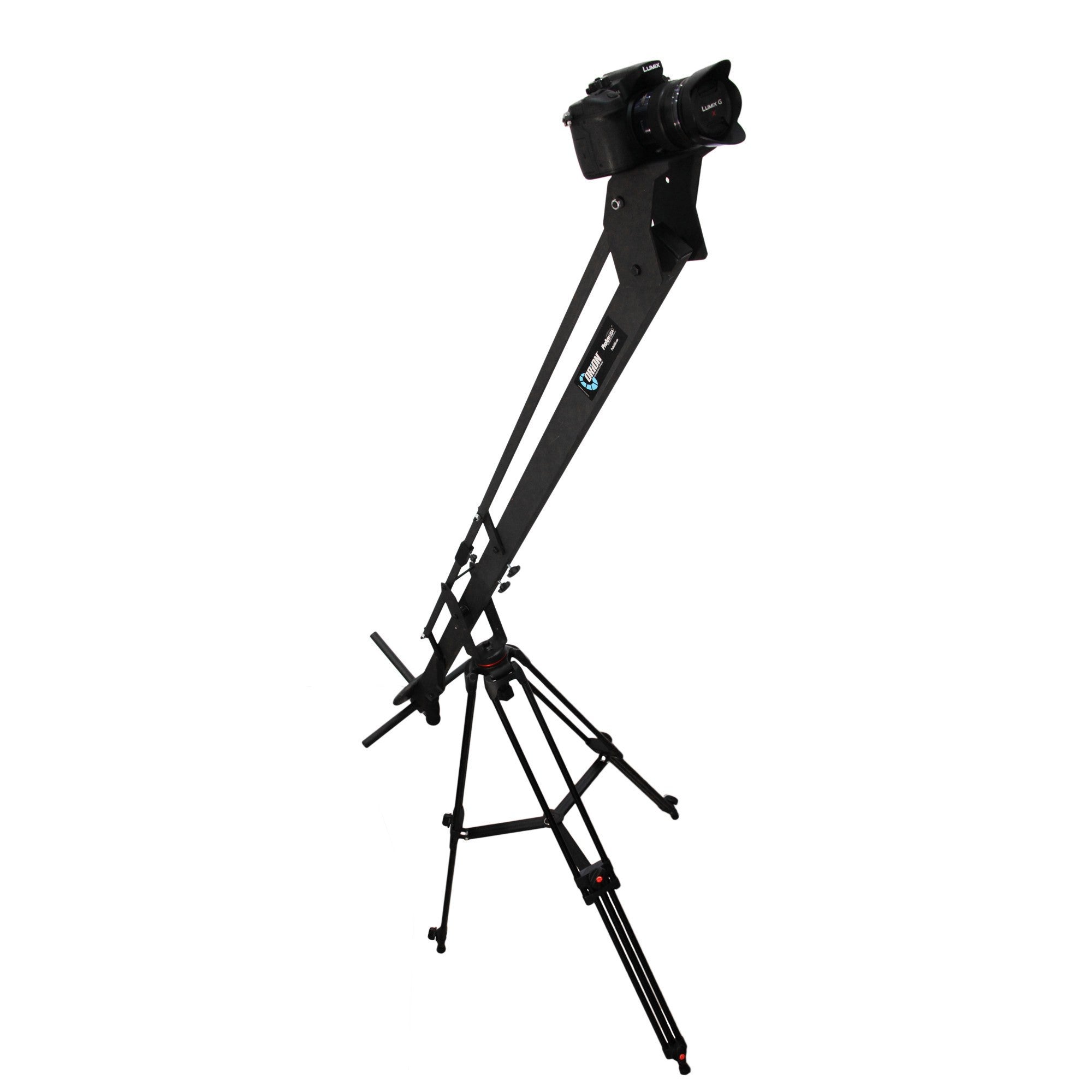

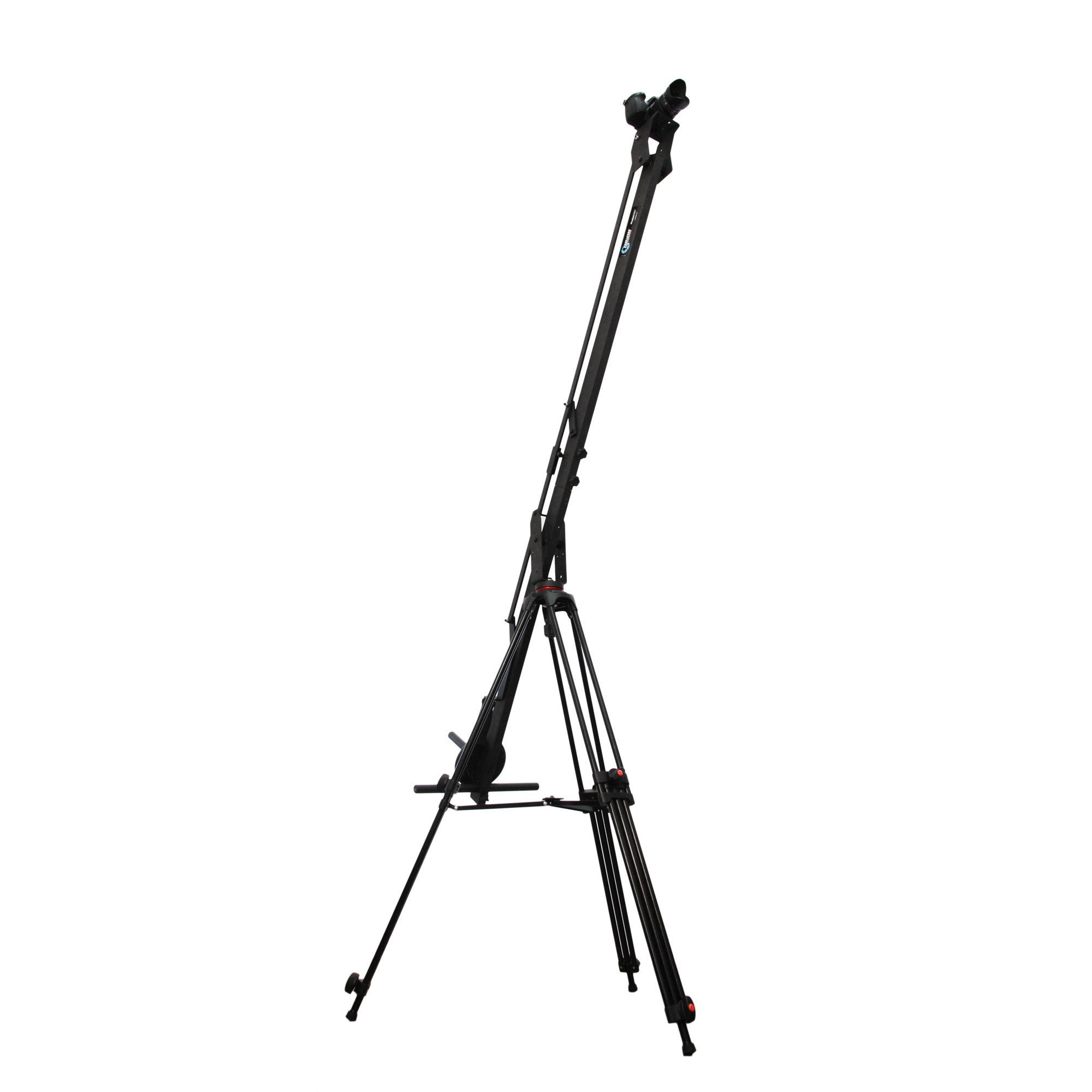

The Orion DVC260 is a 6 ft camera crane built for tight spaces where longer jibs won’t fit. Churches, small studios, indoor event venues, and cramped shooting locations are where the DVC260 shines. It gives you professional crane movement in spaces where an 8 ft arm would be too long to operate safely.
The DVC260 supports DSLR and mirrorless cameras up to 10 lbs using the same over-slung platform design as the DVC210. The included Camera Extension Plate lets you mount larger camera bodies that extend beyond a standard DSLR footprint.

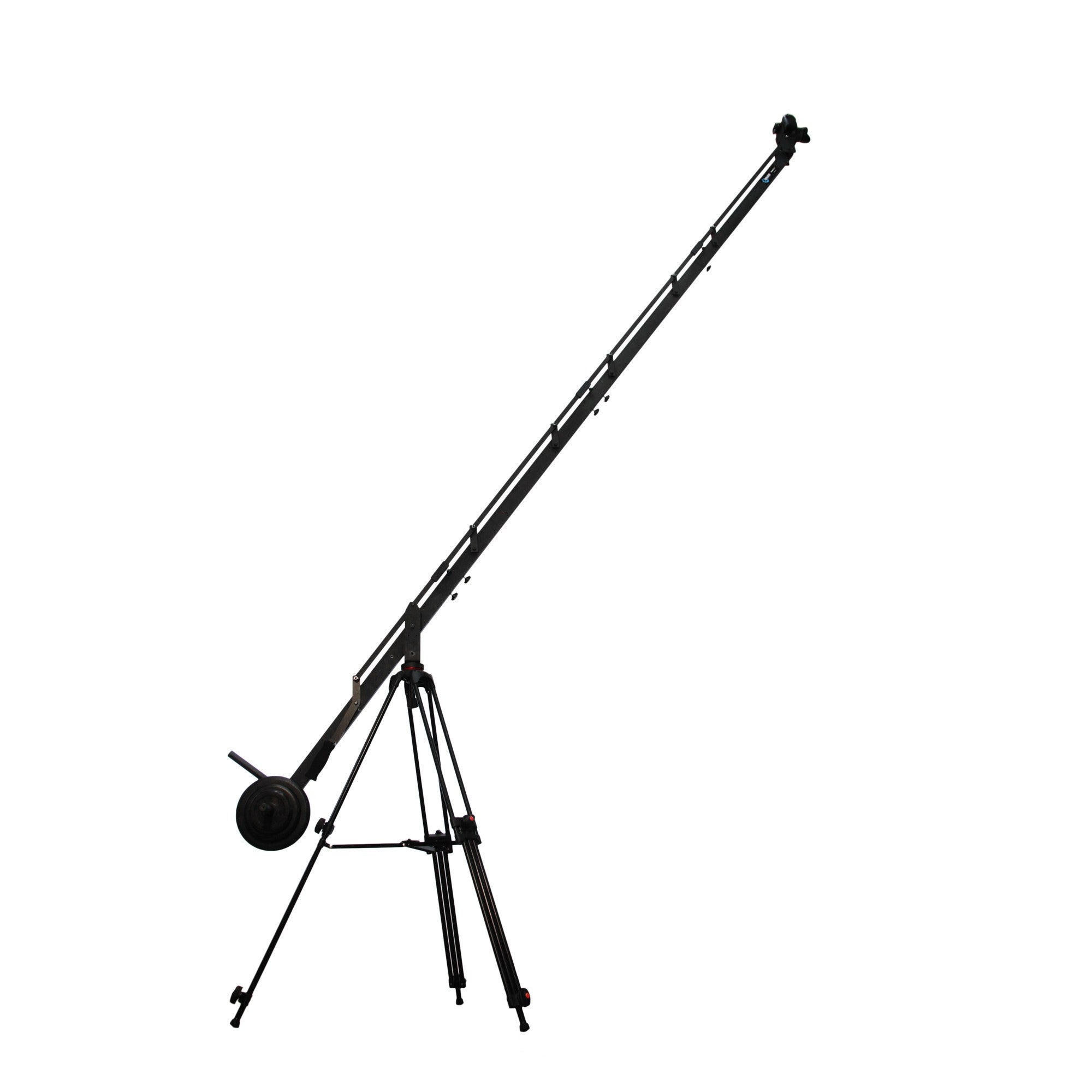

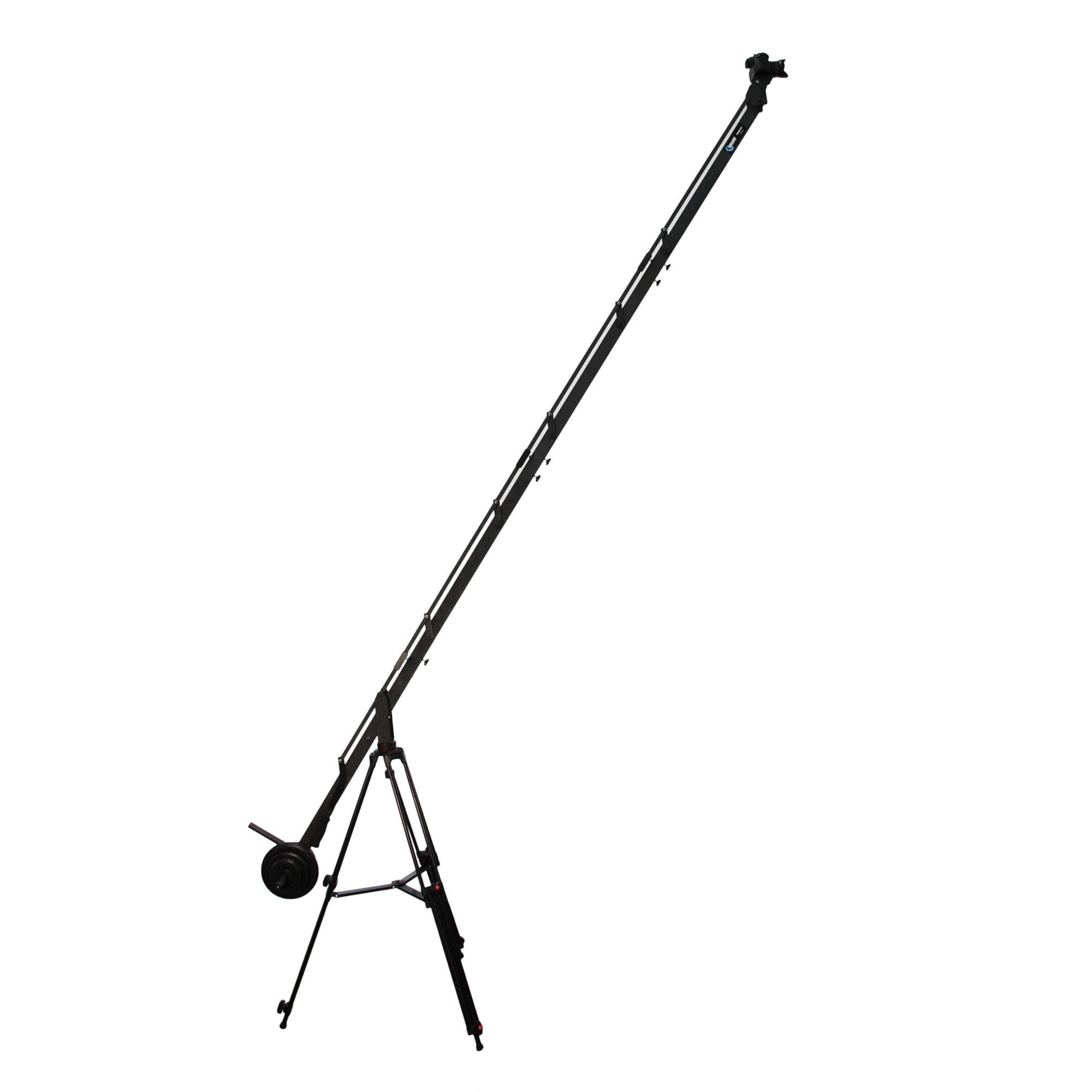

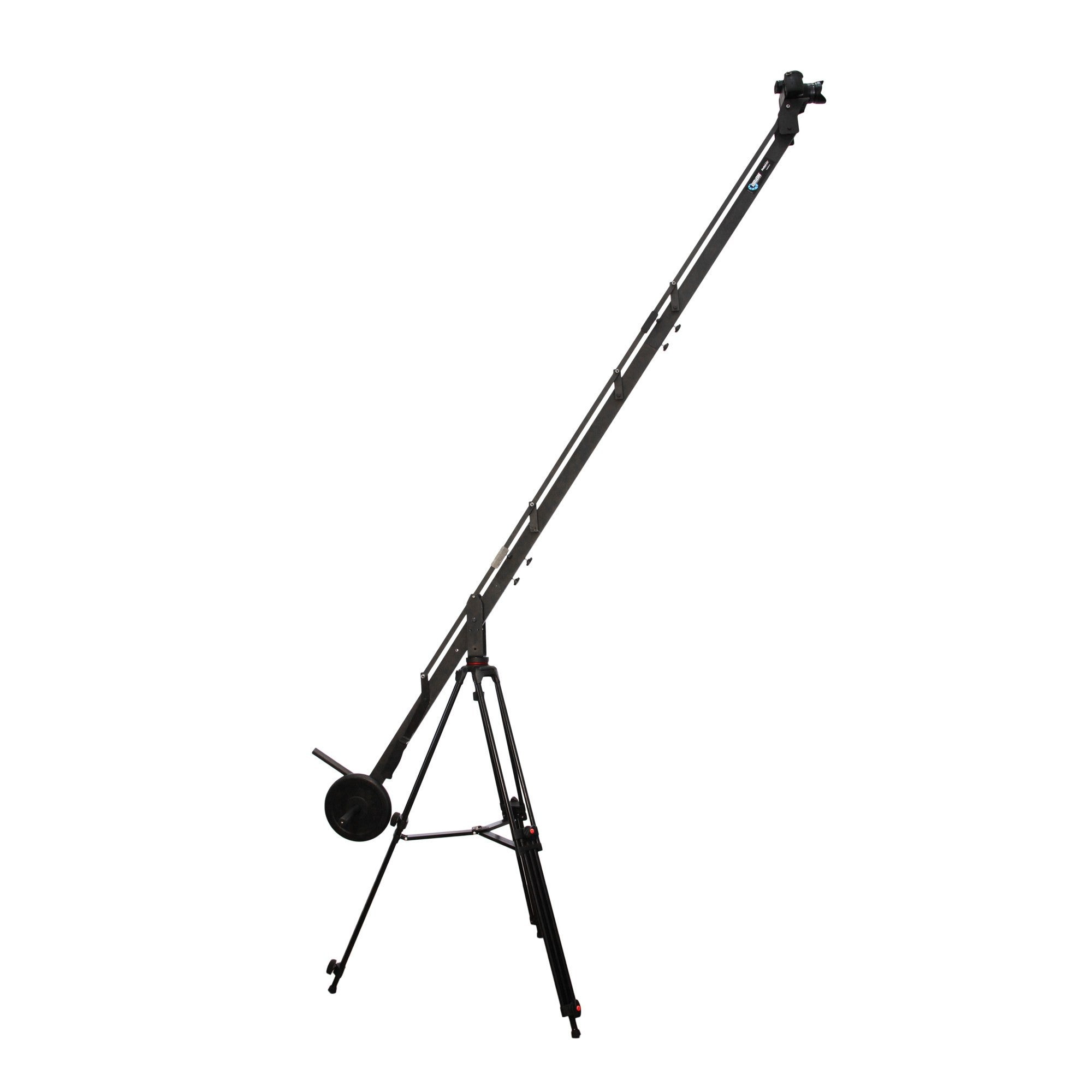

When you need more reach, the DVC260 accepts optional 3 ft extensions (up to two) that bring the total length to 9 ft or 12 ft. This makes the DVC260 the most versatile crane in the Orion lineup: compact enough for interior work at 6 ft, extendable to 12 ft for outdoor or stage productions.
Auto-tilt keeps the camera level, and manual tilt mode lets you control camera angle independently during your crane movement. The crane ships pre-assembled with no tools required.
Specs:
- Reach: 4 ft (122 cm) from fulcrum at base length
- Height gain: 3.5 ft (107 cm) above tripod/support; up to 9.5 ft from the ground on a tall tripod
- Max camera weight: 10 lbs (4.5 kg)
- Material: 6061 aircraft aluminum, powder-coated
- Mounting: 1/4”-20 and 3/8”-16 threaded tripod mount (steel)
- Tilt modes: Auto-level and manual
- Extendable: Accepts up to two 3 ft extensions (sold separately) for 9 ft or 12 ft total
- Assembly: Pre-assembled, no tools required
- Warranty: Lifetime
- Guarantee: 30-day money back
What’s included: Orion DVC260 crane arm with over-slung platform, Camera Extension Plate, hardware. Camera, counterweights, extensions, tripod, and stand sold separately.
FEATURES AND SPECIFICATIONS
Lightweight and sturdy 6061 aircraft aluminum constructionGains 3.5 ft (107cm) from the tripod or support and up to 9.5 ft from the ground when attached to a large tripodConvertible design allows up to two 3' extension to be added laterQuickly mounts to standard tripod heads using 1/4" x 20 or 3/8" x 16 threads. Does not require removal of the headCamera can tilt independent of the crane itselfOperate with one hand using auto-tilt mode. Camera stays level.6' crane breaks down into two 3' sections in secondsWeights can be easily added for counterbalance (not included)Get shots from below or overhead subjectCrane supports up to 10 lbs. (4.5 kg)Smooth effortless motions on three axisLCD monitor can be easily added to view live footageDVC260 crane weighs only 10 lbs (4.5 kg)This item includes the camera crane only. The video camera, plate weight and tripod/stand are not included.
AVAILABLE OPTIONS
- 3 foot Extension - easily attaches without tools. Add up to two extension to extend the crane to 9' and 12'
- Camera Crane Stand - is a great and economical support for a ProAm USA Camera Crane
- 3/8" Bearing Mount for Crane - allows you to attach the crane directly to tripod legs and smoothly pan
- Tilt Brake for Crane - allows you to lock the crane in a tilted position. Use only when counterbalanced.
- Camera Crane Carrying Bag - easily fits a crane and accessories
- Heavy Duty Tripod with 3/8" Bearing Mount - Sturdy set of ProAm USA tripod legs included with the 3/8" Bearing Mount
Questions & Answers
Have a Question?
-
What is the extention length from fulcrum to camera platform for Orion DVC 260 camera crane.
The camera platform extends 4 feet from the fulcrum point of the crane.
